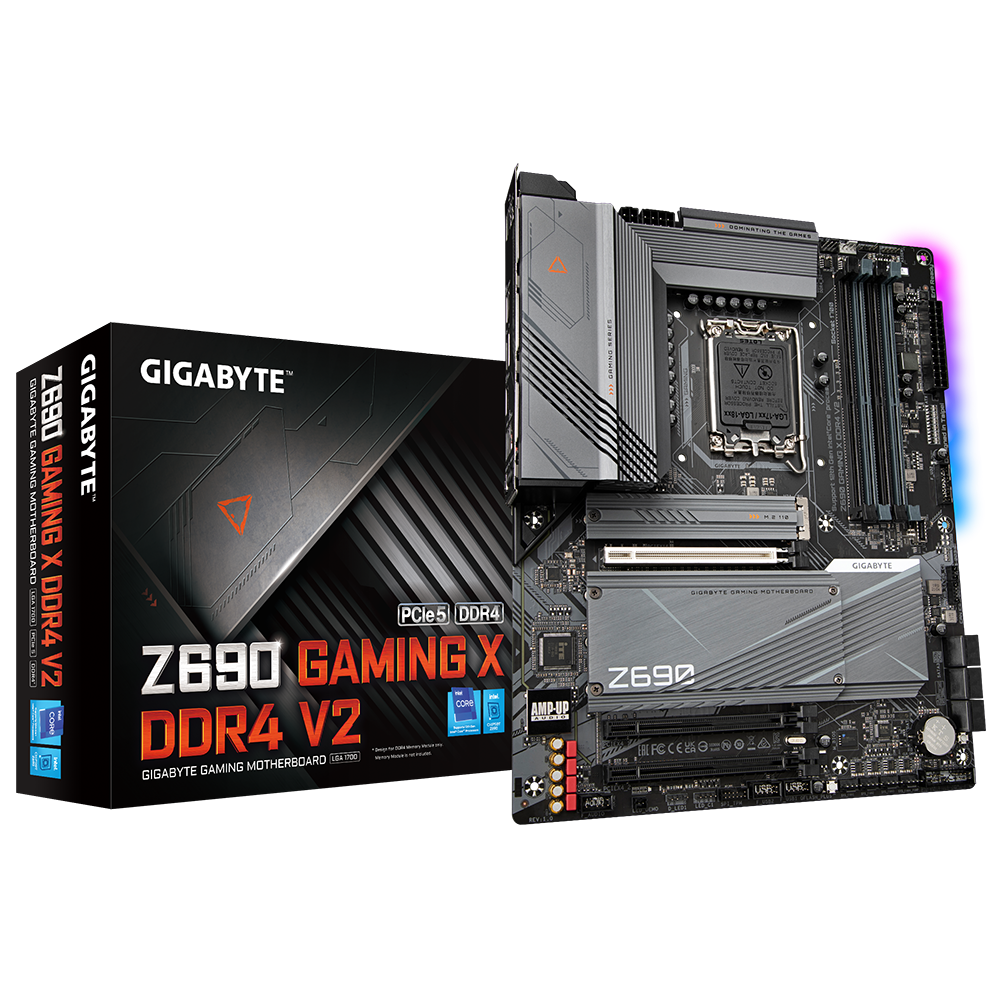

Z690 GAMING X DDR4 V2

Supports 12th Gen Intel® Core™ Series Processors​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​
16*+1+2 Twin Hybrid Phases Digital Power Design with 70A Power Stage and Tantalum Polymer Capacitor
Shielded Memory Routing to Avoid Interference
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks​
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management​
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds​
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* 8+8 phases parallel power design
Brand: Gigabyte
Warranty: 10 months
Availability: In Stock
Rs. 70,500
  • CPU
    1. LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    2. L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.
  • Chipset
    1. Intel® Z690 Express Chipset
  • Memory
    1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MT/s memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® ALC1220-VB CODEC
      * The back panel line out jack supports DSD audio.
    2. High Definition Audio
    3. 2-channel analog output
    4. Support for S/PDIF Out
      7.1-channel digital signals
      * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
    2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
      (The PCIEX4 slots conform to PCI Express 3.0 standard.)
