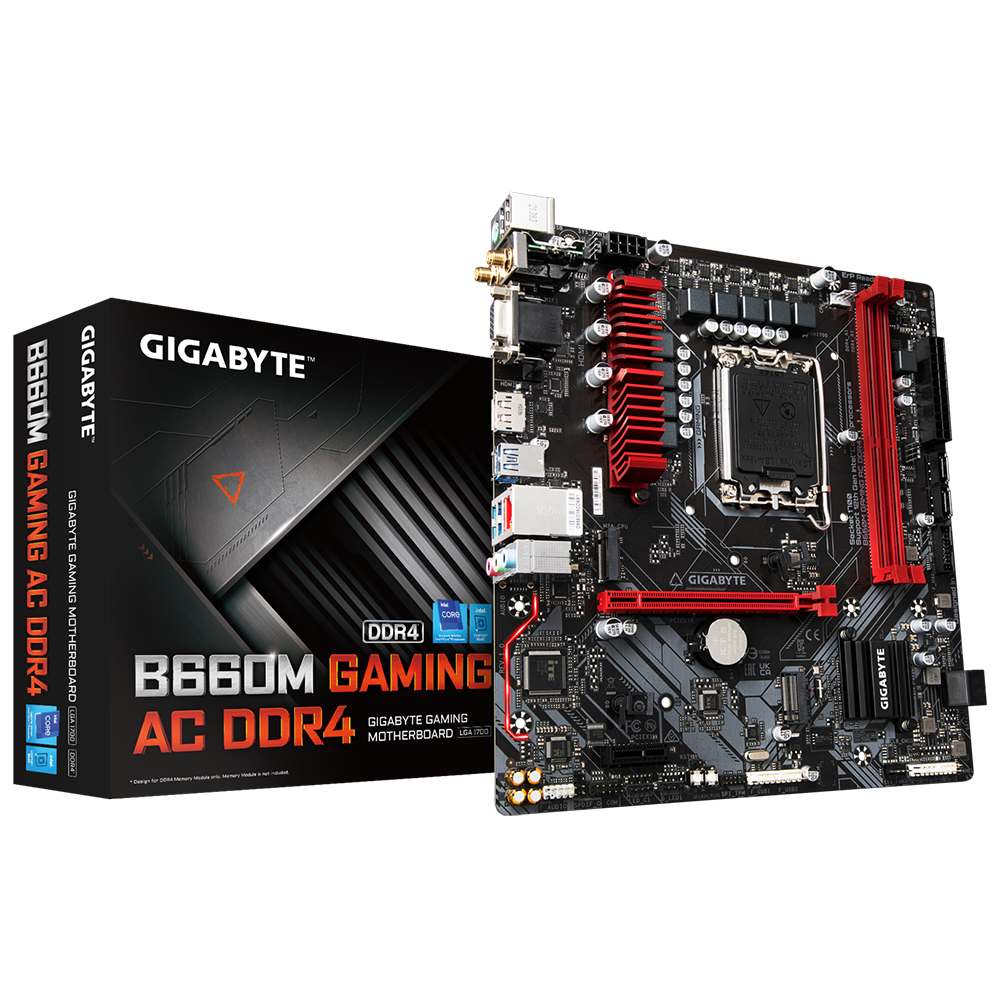

B660M GAMING AC DDR4

Supports 13th/12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
WIFI 802.11ac & BT with AERO Antenna​​
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​
Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile Connections​​
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​
Brand: Gigabyte
Warranty: 10 months
Availability: In Stock
Rs. 43,500
  • CPU
    1. LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    2. L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.
  • Chipset
    1. Intel® B660 Express Chipset
  • Memory
    1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MT/s memory modules
    2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
      4. (Graphics specifications may vary depending on CPU support.)
    Support for up to 3 displays at the same time
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Intel® Wi-Fi AC 3168 (PCB rev. 1.0)
    1. WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 4.2
    3. Support for 11ac wireless standard and up to 433 Mbps data rate
    Intel® Wi-Fi AC 9560 (PCB rev. 1.1)
    1. WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 11ac 160MHz wireless standard and up to 1.73 Mbps data rate.
    * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
    2. 1 x PCI Express x1 slot
      (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
